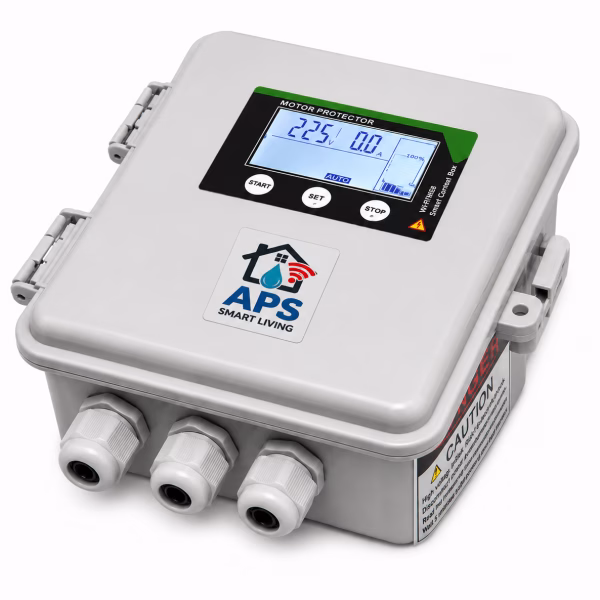

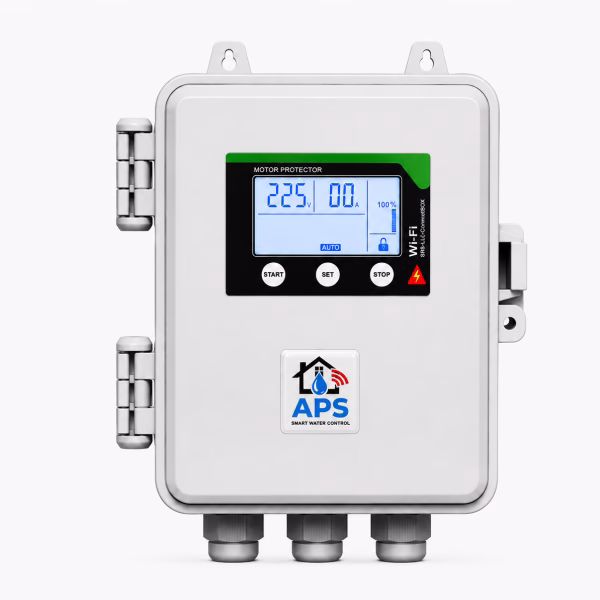

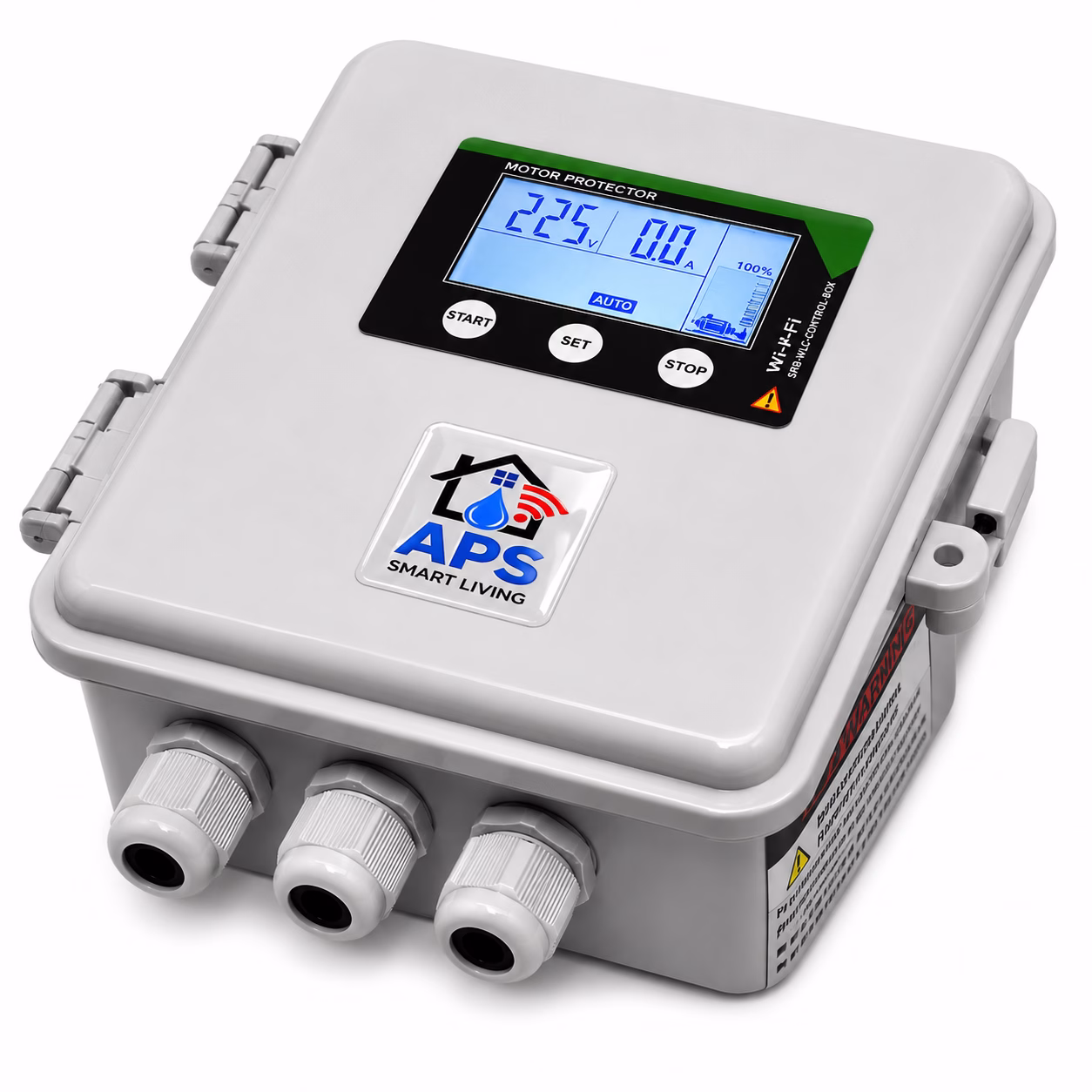

Control Box 230V
Reliable Water Control
Protect and manage your water system with the Control Box 230V. Designed for 230V single-phase pumps from 0.37kW to 2.2kW, it delivers reliable control and advanced protection. The controller helps reduce downtime while extending the life of your pump. The control box settings can only be configured directly on the controller.
Advanced Pump Protection
Every pump is an investment, so reliable protection is essential. The Control Box 230V continuously monitors your system to help prevent common causes of pump damage. It also protects against dry running, pump overload, pump stalling, undervoltage, and overvoltage.
If a fault occurs, the controller immediately activates visual and audible alarms. As a result, you can identify problems quickly before they cause unnecessary damage.
Simple Monitoring and Setup
A clear LCD display provides real-time operating information for quick system monitoring. Additionally, the push-button calibration makes installation and setup straightforward. The enclosure includes reserved space for an internal starting capacitor when required. Everything remains neatly housed inside one compact control box.
Maintenance Made Easier
Built-in diagnostic functions simplify routine maintenance and fault finding. The controller stores the last five fault events, making recurring issues easier to identify. It also records the pump’s total running time for maintenance planning and performance monitoring.
Furthermore, the built-in memory saves your settings during power interruptions. Your controller returns to normal operation without requiring reconfiguration after power is restored.
Flexible Installation Options
The Control Box 230V works with float switches, pressure switches, as well as conductive level probes. Therefore, it suits a wide range of water management systems. Three conductive level probes for clean water applications are also included as standard.
However, external float switches are recommended for dirty water or wastewater installations. This helps maintain reliable operation in more demanding environments.
Typical Applications of The Control Box 230V
The Control Box 230V is suitable for many residential, agricultural, commercial, as well as light industrial water systems, including:
- Deep well (borehole) submersible pumps
- Centrifugal pumps
- Pipeline pumps, In-line pumps and Multistage pumps
- Pressure boosting systems
- Domestic water supply systems
- Commercial water supply systems
- Water transfer between storage tanks
- Automatic tank filling
- Water level control
- Irrigation systems
- Agricultural water supply
- Clean water pumping applications using conductive level probes
- Installations using pressure switches
- Installations using float switches
Built for Demanding Conditions
A durable IP65-rated wall-mounted enclosure protects the controller in demanding environments. Its operating temperature range of -25°C to +55°C ensures reliable year-round performance.
Main Features of The Control Box 230V
- Suitable for 230V single-phase pumps from 0.37kW to 2.2kW
- Clear LCD display with simple push-button setup
- Advanced protection against dry running, overload, stalling, undervoltage, as well as overvoltage
- Visual and also audible fault alarms
- Stores the last five fault records for faster troubleshooting
- Displays total pump running time for maintenance planning
- Built-in memory saves settings after power interruptions
- Reserved space for an internal starting capacitor
- Compatible with float switches, pressure switches, as well as conductive level probes
- Three conductive level probes for clean water systems included
- Durable IP65-rated wall-mounted enclosure
- Suitable for residential, agricultural, commercial, as well as light industrial applications
