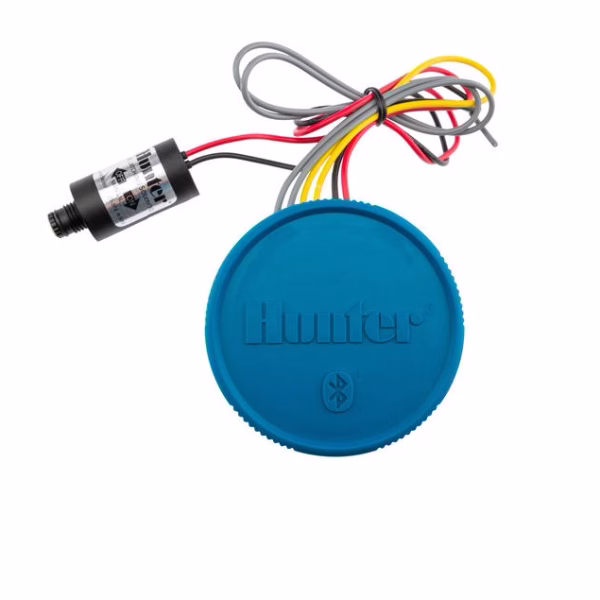

A valid RSA ID documentHunter Node B/T 1ST Plus Solenoid
This battery-powered Hunter Node with Bluetooth, waterproof controller offers automatic irrigation control for temporary irrigation and sites without electricity.
Youtube.com/watch Bluetooth Node
Overview
Avoid the valve box with the battery-operated NODE-BT Controller! The NODE-BT is enabled with powerful wireless Bluetooth® technology that can be easily managed from a smartphone. Install the waterproof NODE-BT in gardens, parks, medians, roundabouts, greenhouses, or other outdoor applications where AC power is unavailable.
The NODE-BT is controlled by a multi-language smartphone app. The app that maps controllers by location and sends battery-change reminders. Controllers can also be configured offline, which makes field adjustments quick and easy to deploy at a later time. Run-time flexibility is perfect for germinating seeds or other agricultural applications.
Best of all, the NODE-BT makes battery-powered irrigation convenient and comfortable. For versatility during installation, the controller is mountable in five unique ways. Total app control removes the task of opening dirty valve boxes and programming irrigation schedules on a dark screen. Professionals can also enable irrigation and check battery status right on the controller with the touch of a button, greatly speeding up maintenance.
Hunter Node B/T Key Benefits
- Number of stations: 1, 2, or 4
- Remotely manage unlimited controllers up to 15m line-of-sight
- Manually start, stop, or suspend irrigation for up to 99 days
- Configure watering schedules with 3 programs and 8 start times each
- Activate rain or soil moisture sensors, and set monthly seasonal adjust
- See controller status, total watering and next start times, watering calendar, and irrigation logs
- View battery health and signal status
- Set battery change reminders every 3, 6, 9, or 12 months
- Pin controllers on a map for faster locating
- Copy and paste schedules from controller to controller for faster setup
- View and edit irrigation schedules offline
- View controller event logs and share them with other members
Operating Specifications
- One or two 9V alkaline batteries
- Operates DC-latching solenoids (P/N 458200)
- 30 m maximum wire runs, 1 mm² wire only
- Station output: 9–11 VDC
- P/MV output: 9–11 VDC
- Sensor inputs: 2
- Bluetooth 5.0 (BLE)
- Approvals: Plastic IP68, UL, c-UL, FCC, CE, UKCA, RCM
- Warranty period: 2 years
Hunter Node B/T App Specifications
- iOS® 9.0 or above
- Android™ 5.0 or above
- Maximum communication distance: 15 m
