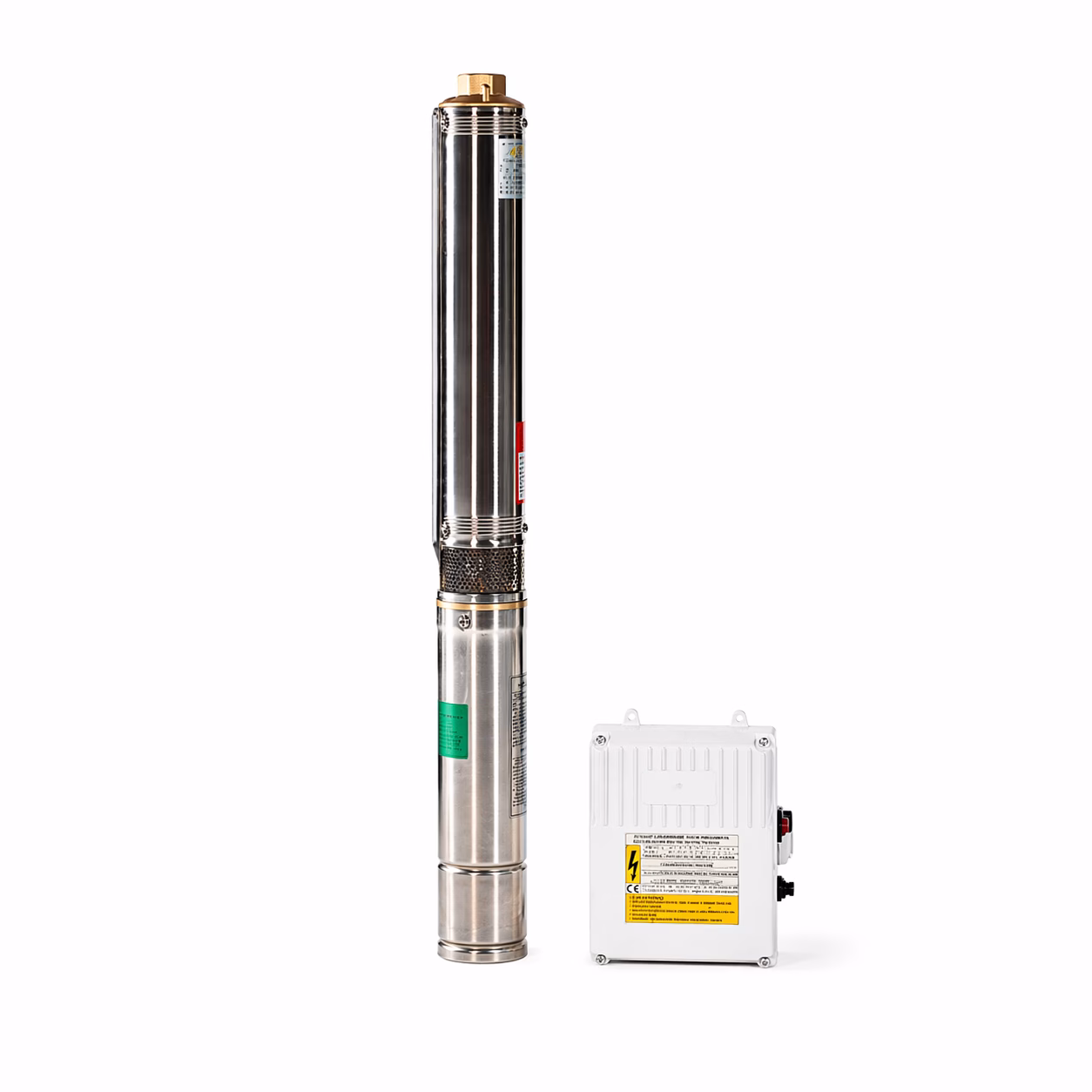

Vega 0.25kW 3″ Standard Borehole Kit
A standout feature of this Vega 3″ borehole kit pump is its strong high-pressure capability and steady delivery ratio, which sets it apart from others in its class. With fewer stages, it ensures reliable performance while also helping extend pump life and simplify operation. As a result, it is an ideal choice for a wide range of water supply applications.
Standard Borehole Kit Advantages:
The Vega 3-Inch Standard Borehole Kit offers a balanced mix of innovation, efficiency, and durability. It is designed to deliver consistent performance across many water pumping situations, including agricultural irrigation and domestic water supply systems.
Its compact design allows for easy installation in narrow boreholes while still maintaining power and efficiency. Although the diameter is smaller, the kit includes a robust submersible pump and a high-efficiency motor that work together to provide steady and reliable water flow. In addition, the compact size helps reduce drilling and casing costs, making it a cost-effective option for both new installations and retrofitting existing boreholes.
Another key benefit of the Vega 3-Inch kit is its advanced motor technology. The submersible motor includes thermal protection and operates efficiently under continuous load. It also delivers high starting torque, which allows smooth startup even under heavy hydraulic conditions. Because of this, the system runs reliably, reduces energy waste, and supports a longer motor lifespan.
The pump in the Vega kit also includes an integrated non-return valve. This valve prevents backflow and protects the motor and impellers from reverse pressure. As a result, the system stays protected while installation becomes easier, since there is no need for external check valves.
Operating Range:
- These pumps are for: domestic, agricultural, mining and industrial use.
- Head range: 25m – 45m
- Flow rate: 700 l/h – 2400 l/h
- Minimum immersion: 1m
- Maximum sand content: 50g/m³
Key Materials:
- Suction, stage casing and discharge outlets: stainless steel 304
- Impellers: stainless steel 304
- Pump shaft: SS AISI 431
- Bearing bush: anti-friction rubber
- Non-return valve: stainless steel 304
- Cable guard and strainer: stainless steel 304
- Pump motor couplings are as per NEMA standards.
