Control Box & Water Level – Complete Smart Pump & Water Management Solution
Smarter Pump Control and Water Level Monitoring in One Complete Solution
Take complete control of your water system with the APS Wi-Fi Pump Control Box & Water Level Sensor Combo solution. This intelligent combination brings together advanced pump control as well as accurate water level monitoring to deliver reliable performance, greater convenience, and improved system protection.
Control your pump remotely, monitor your tank in real time, and also receive instant alerts through the Tuya Smart Life App. Whether you manage a home, farm, commercial property, or remote installation, this complete APS Wi-Fi Pump Control Box & Water Level Sensor Combo solution helps you protect your equipment while keeping your water supply under control.
Smart Control from Anywhere
The integrated Smart Wi-Fi Dry Contact Switch also allows you to switch your pump on or off from anywhere with an internet connection. Using the Tuya Smart Life App, you can also create schedules, timers, and automation routines that suit your daily water requirements.
The app controls the integrated Wi-Fi Dry Contact Switch, while all controller settings and operating parameters are configured directly on the control box.

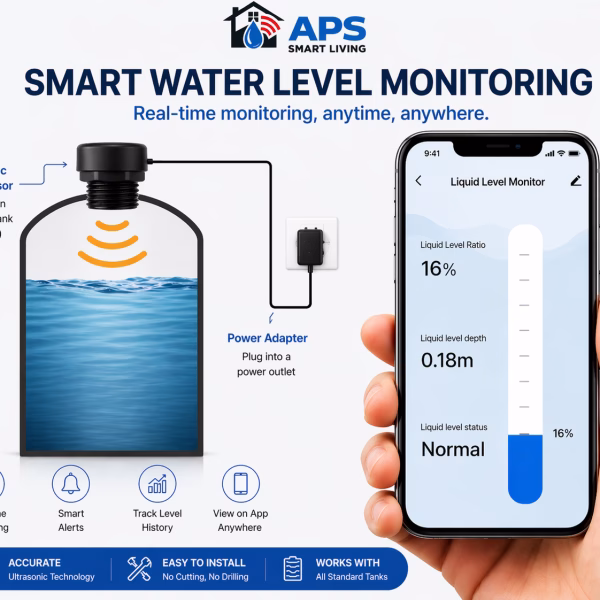

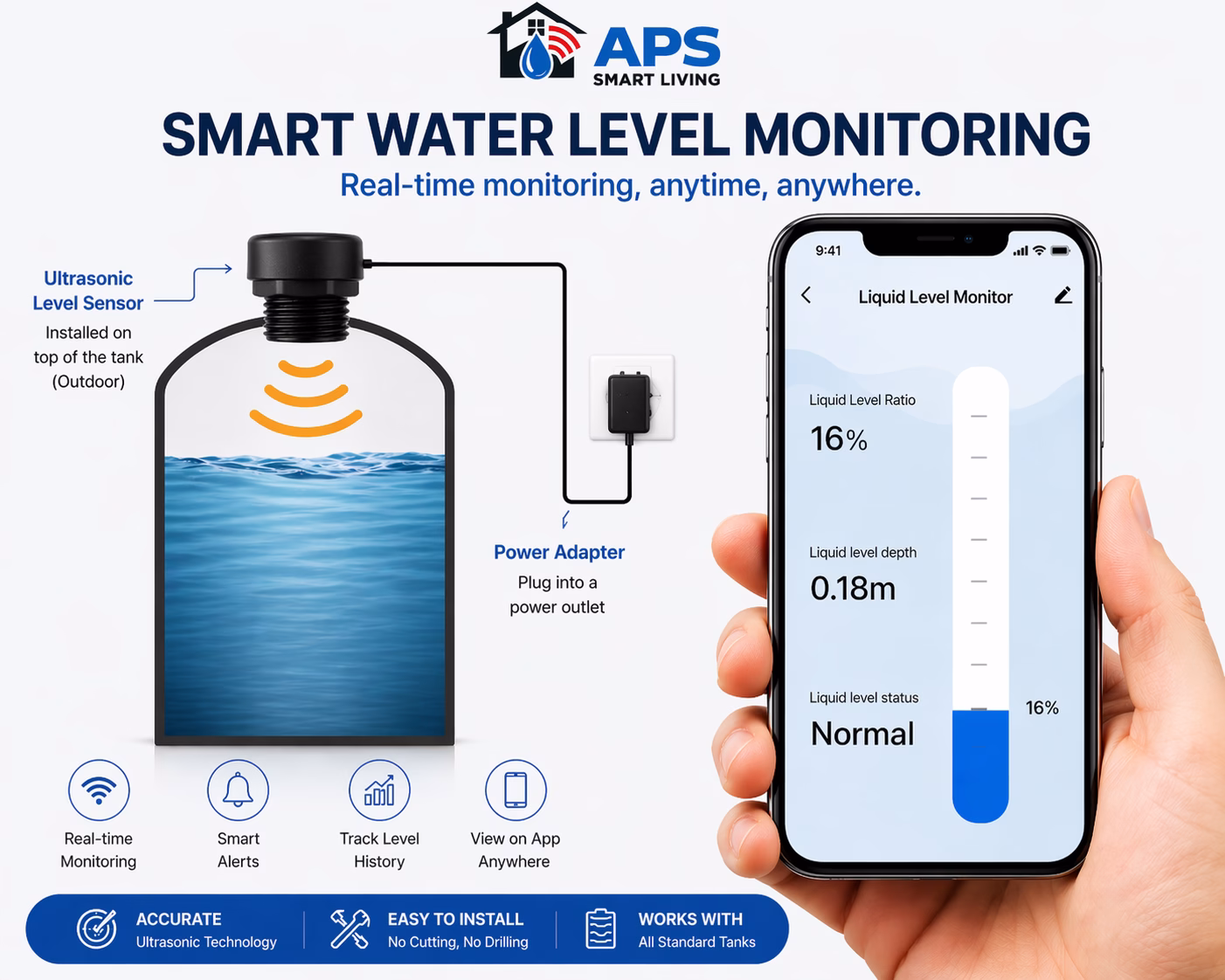

Stay Informed with Real-Time Water Level Monitoring

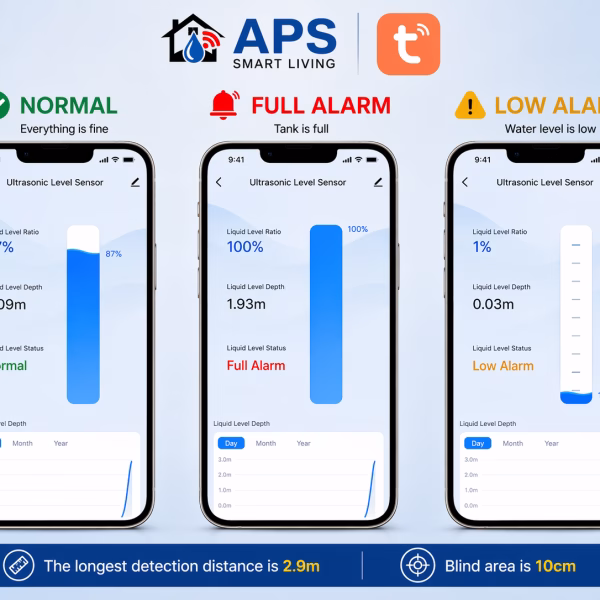

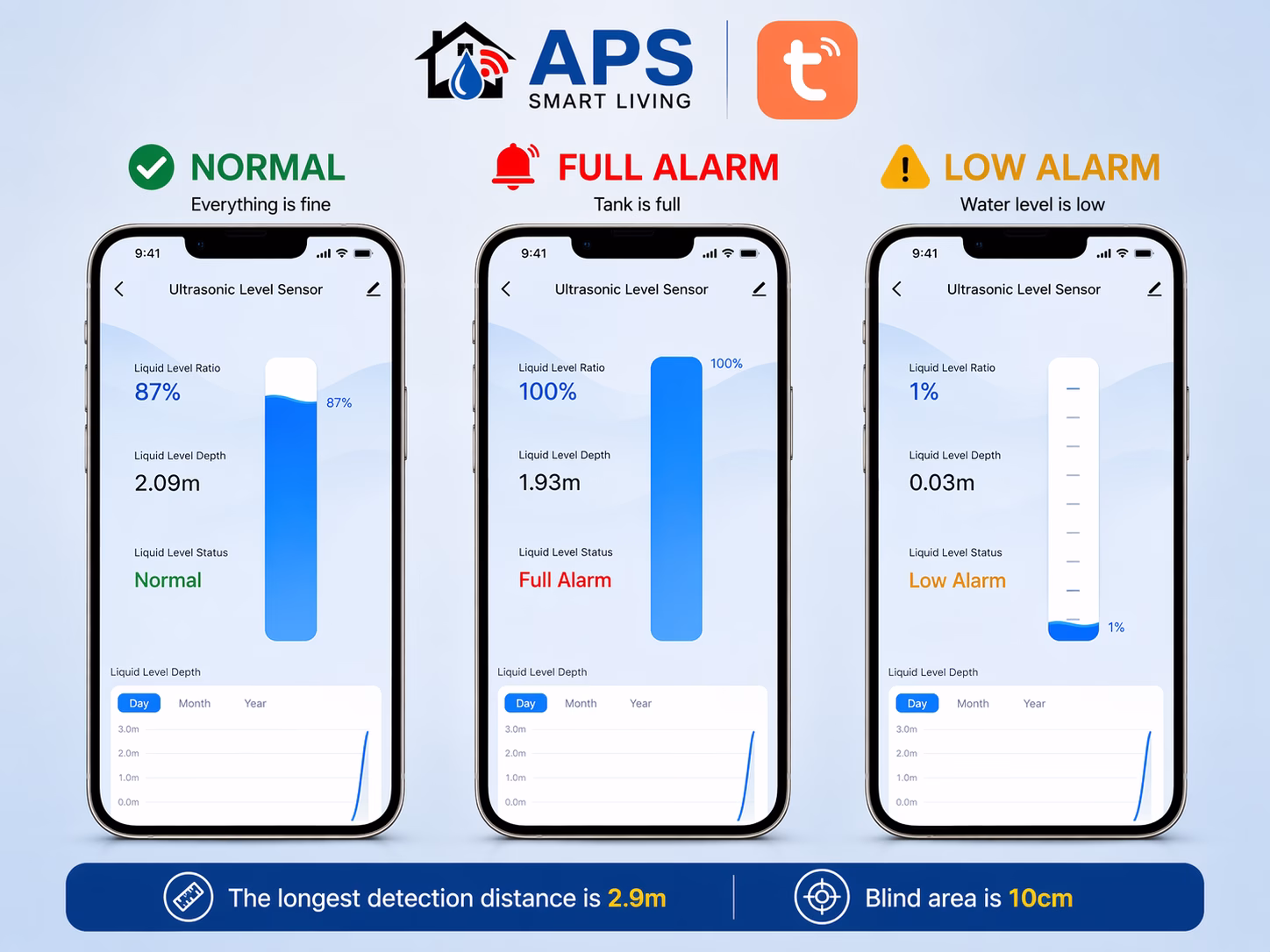

As a result, you can always know how much water is available without checking your tank manually. The APS Smart Wi-Fi Water Level Sensor sends live tank information directly to the Smart Life or Tuya App, giving you complete visibility wherever you are.
Also View:
- Water level percentage
- Liquid depth
- Tank status
- Water level history
Instant notifications alert you when your tank reaches normal, low, or full levels. You can also create custom alert levels to help prevent shortages and avoid overflow damage before problems occur.
Intelligent Pump Protection
Reliable pump protection helps reduce downtime and protects your installation during everyday operation.
The controller also protects against:
- Dry running
- Pump overload
- Pump stall
- Undervoltage
- Overvoltage
- Open phase
- Phase reversal
An optional thermal control function is available on the BHC PT100 model when fitted with the thermal sensing expansion.
Flexible Operating Modes
The programmable controller also offers four operating modes to suit different water management applications:
- Tank-to-tank control
- Booster pump control by pressure switch
- Drainage by level sensor
- Timed pumping
These operating modes make the system suitable for water transfer, pressure boosting, drainage, as well as automatic tank level control.
Accurate Non-Contact Measurement
The ultrasonic sensor measures water levels without touching the liquid, helping maintain long-term reliability while reducing maintenance.
Sensor specifications also include:
- Detection range up to 2.9m
- Blind area of 10cm
- Stable and consistent readings
- Suitable for most standard tanks

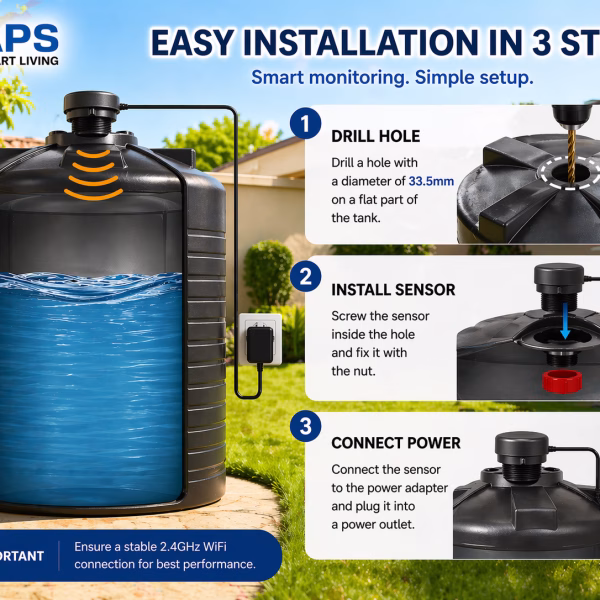

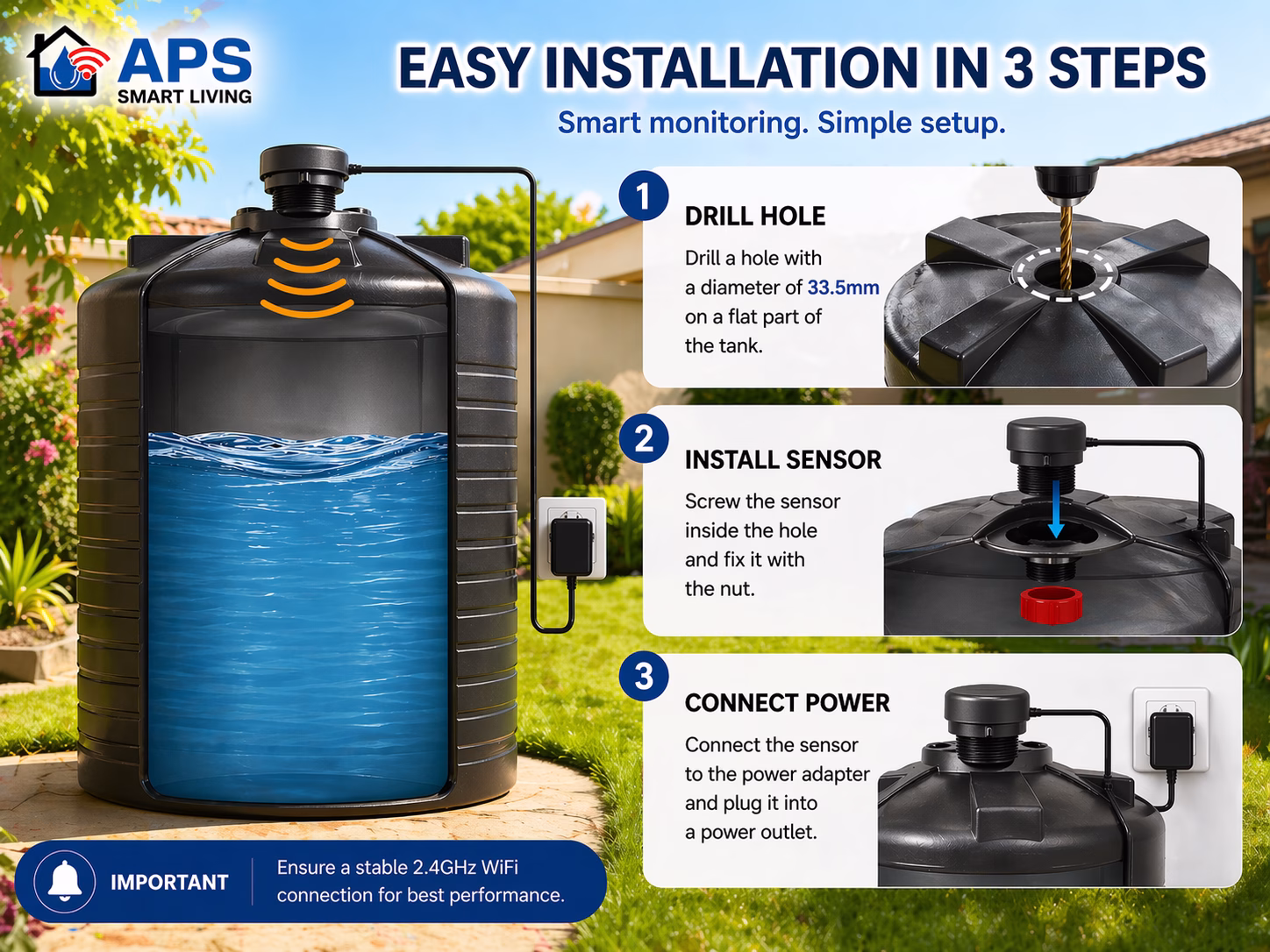

For the best performance, install the sensor on a flat surface near the center of the tank. Keep it positioned vertically and also avoid placing it near inlets or uneven surfaces.
For reliable readings:
- Use a stable 2.4GHz Wi-Fi connection
- Avoid liquids with foam or sound-absorbing properties
- Do not measure objects that are too small or soft
- Keep the sensor angle below 45°

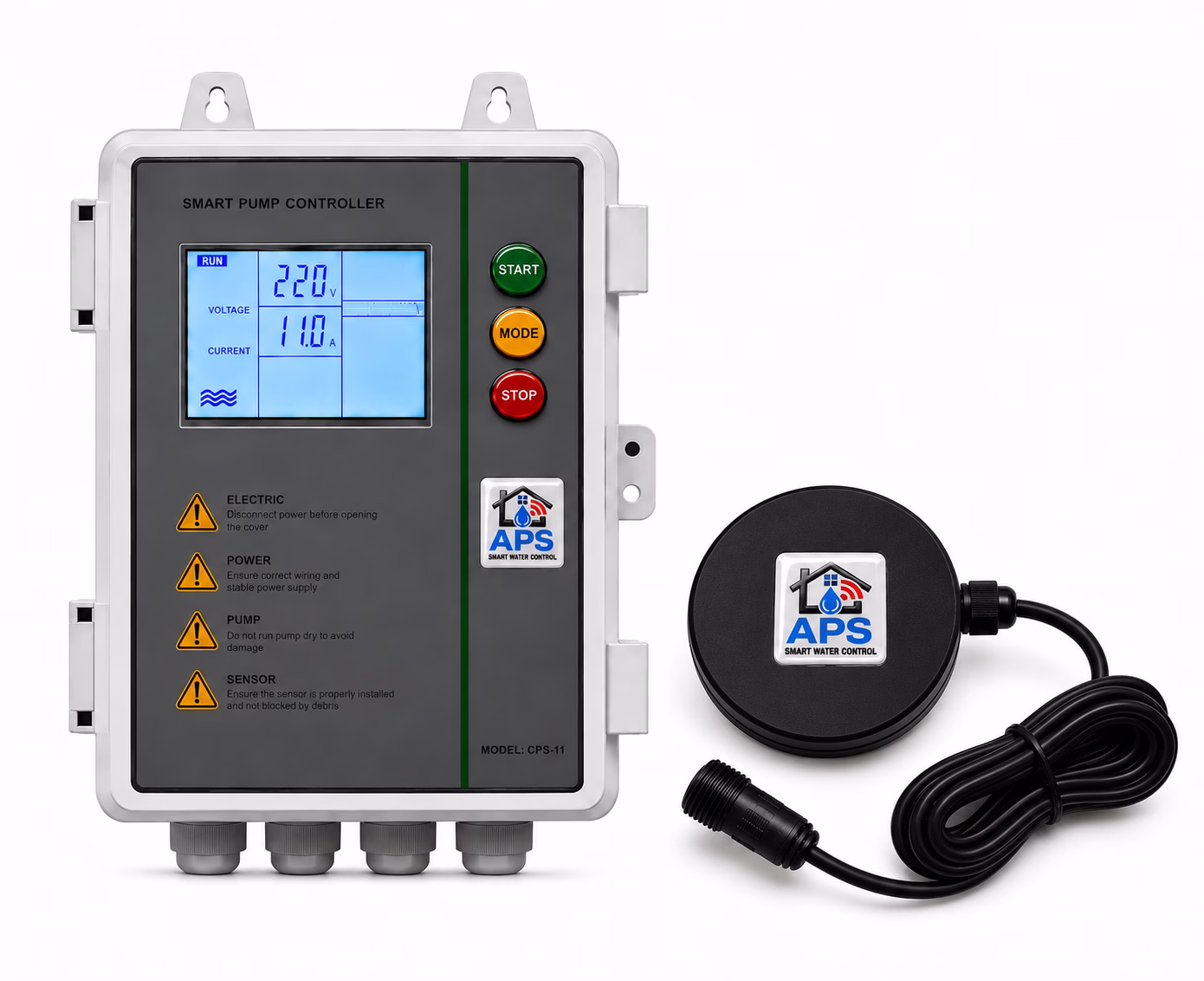

Easy Monitoring and Installation with the APS Wi-Fi Pump Control Box & Water Level Sensor Combo

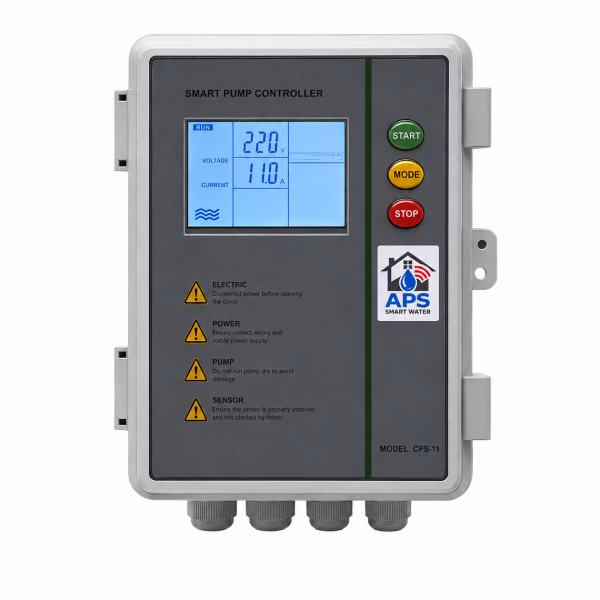

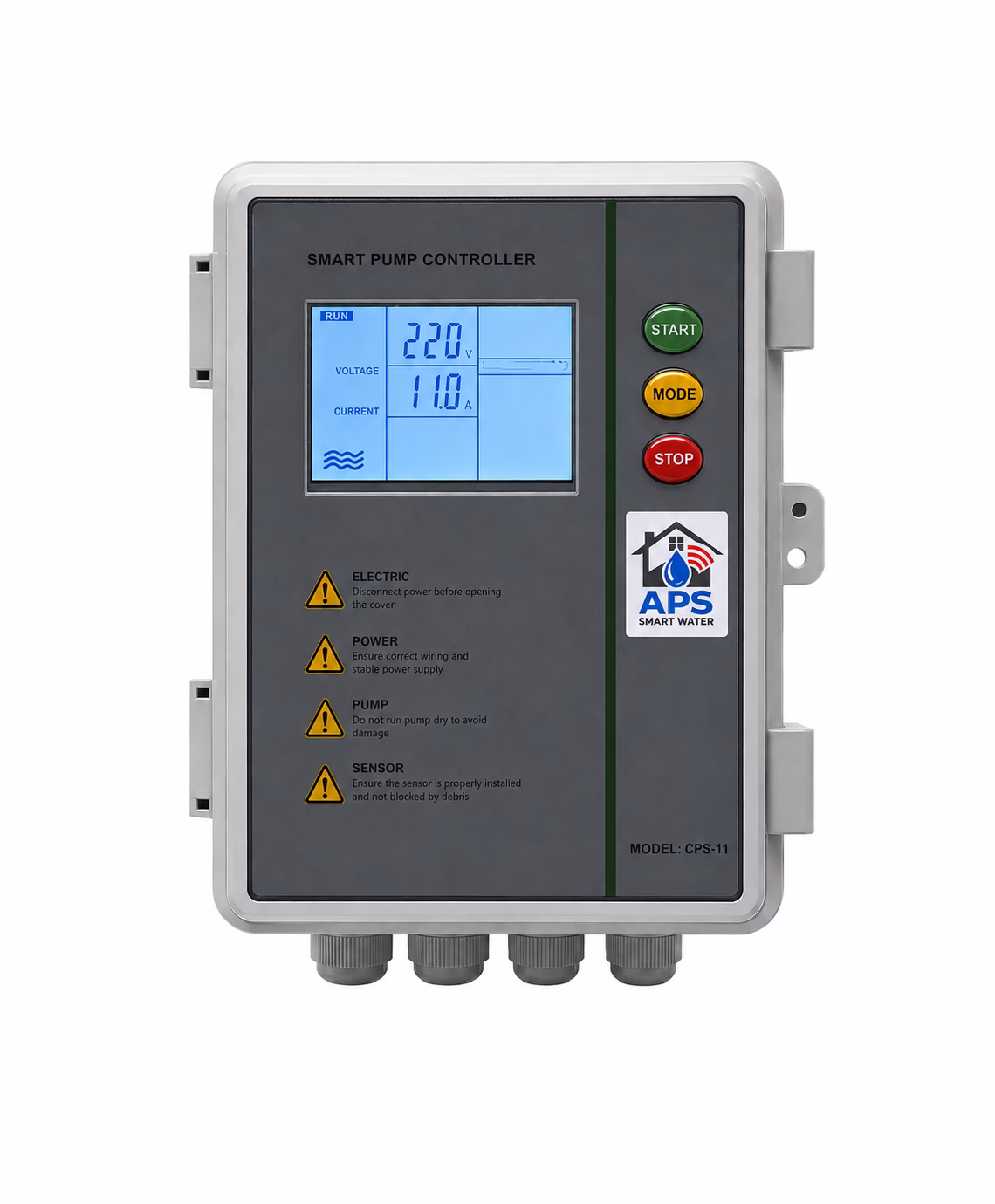

The controller features a clear LCD display for quick access to operating information as well as controller functions. Push-button controls allow fast motor calibration after installation or maintenance.
The controller stores the last five failure records and also displays accumulated pump running time, making routine servicing much easier.

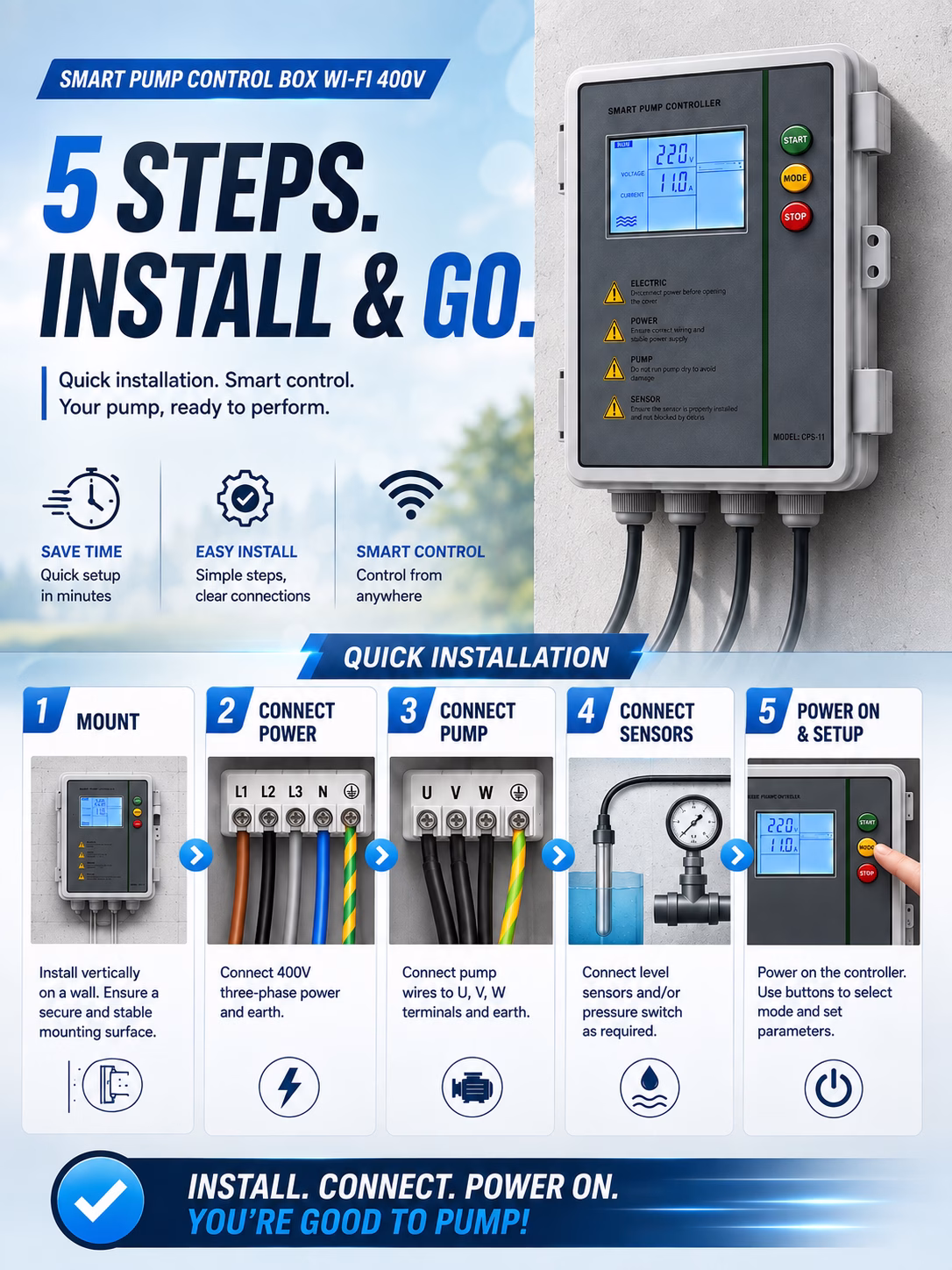

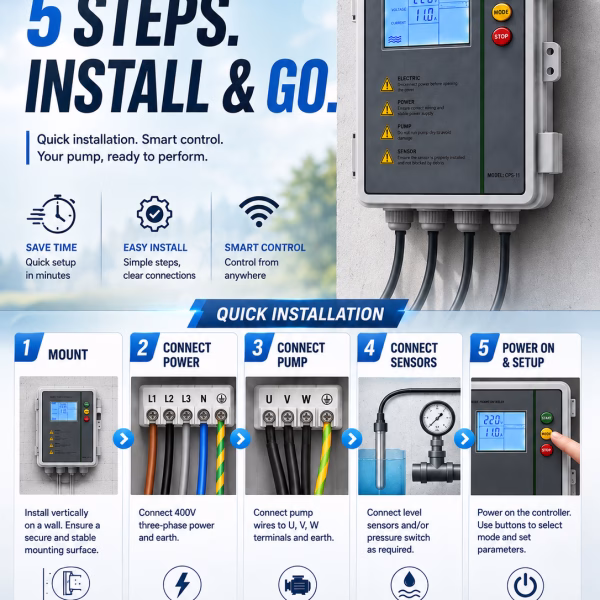

Installation is also simple. The sensor requires no cutting or drilling, while the controller is housed in a durable IP65 enclosure for vertical wall-mounted installation.
The controller also supports liquid level transfer distances of up to 200 meters and works seamlessly with the APS Smart Wi-Fi Water Level Sensor.
Compatible Applications
The controller supports 400V three-phase pumps from 0.37kW to 7.5kW.
Compatible with the following pump types:
- Deep well submersible
- Centrifugal
- In-line
- Circulation
- Multistage
This complete solution is ideal for homes, farms, commercial properties, remote locations, water storage tanks, pressure boosting systems, drainage applications, as well as water transfer installations.

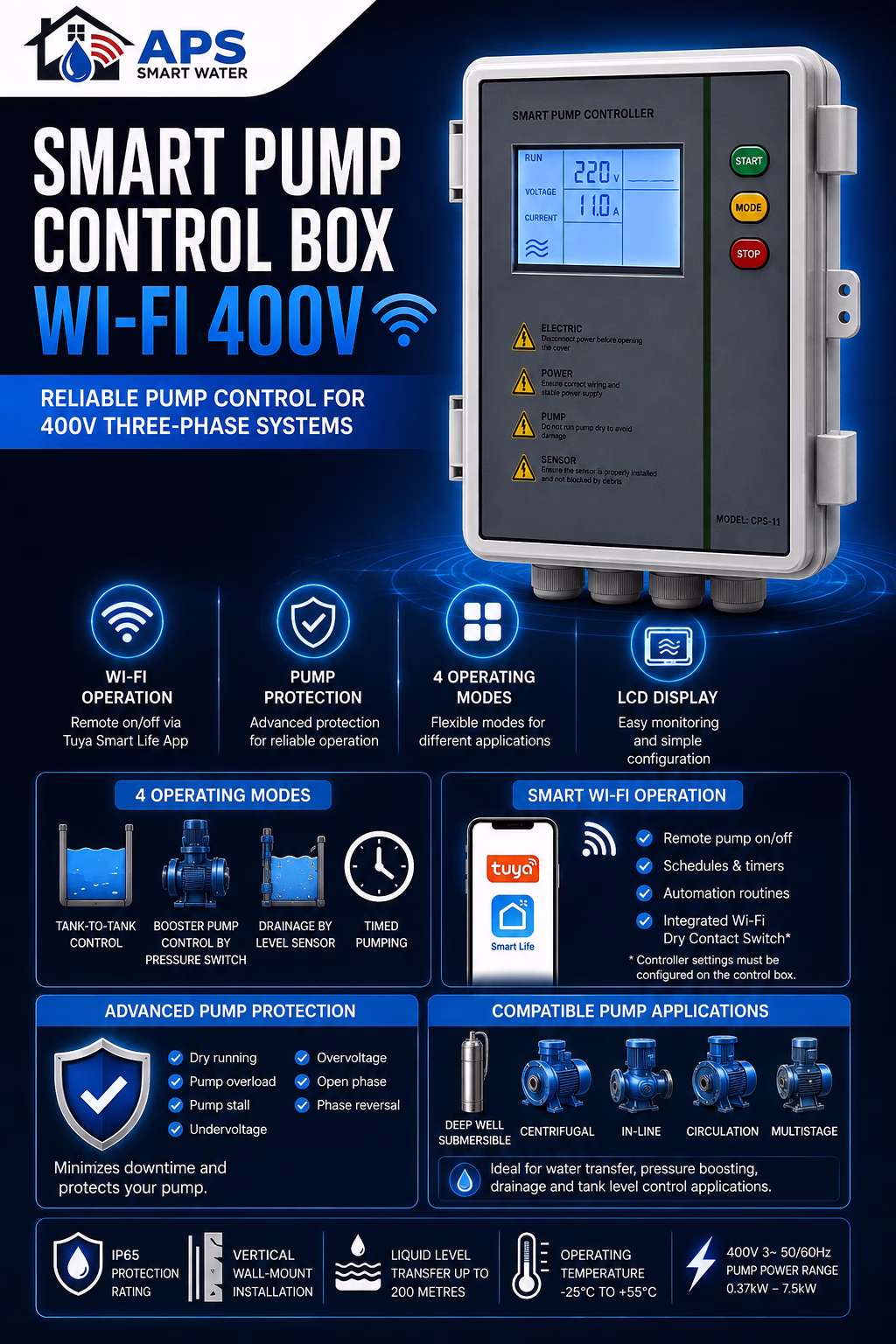

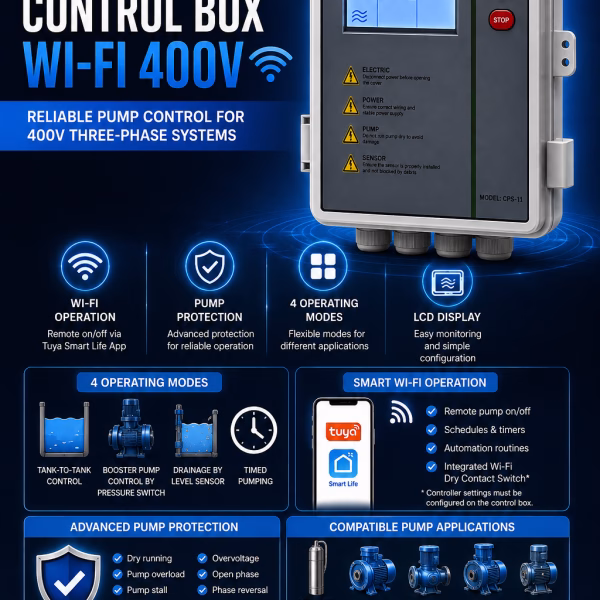

Control Box Features
- Programmable controller for 400V three-phase pumps from 0.37kW to 7.5kW
- Integrated Smart Wi-Fi Dry Contact Switch
- Remote pump on/off control through the Tuya Smart Life App
- Four programmable operating modes
- LCD display
- Push-button motor calibration
- Adjustable controller parameters
- Displays the last five failure records
- Displays accumulated pump running time
- Pressure switch, double liquid level, as well as temperature control
- Supports liquid level transfer distances up to 200m
- IP65 rating – dust-tight as well as water jet resistant enclosure
- Vertical wall-mounted installation
- Operating temperature: -25°C to +55°C
- Protection against dry running, pump overload, pump stall, undervoltage, overvoltage, open phase, as well as phase reversal
- Optional thermal control function available on the BHC PT100 model

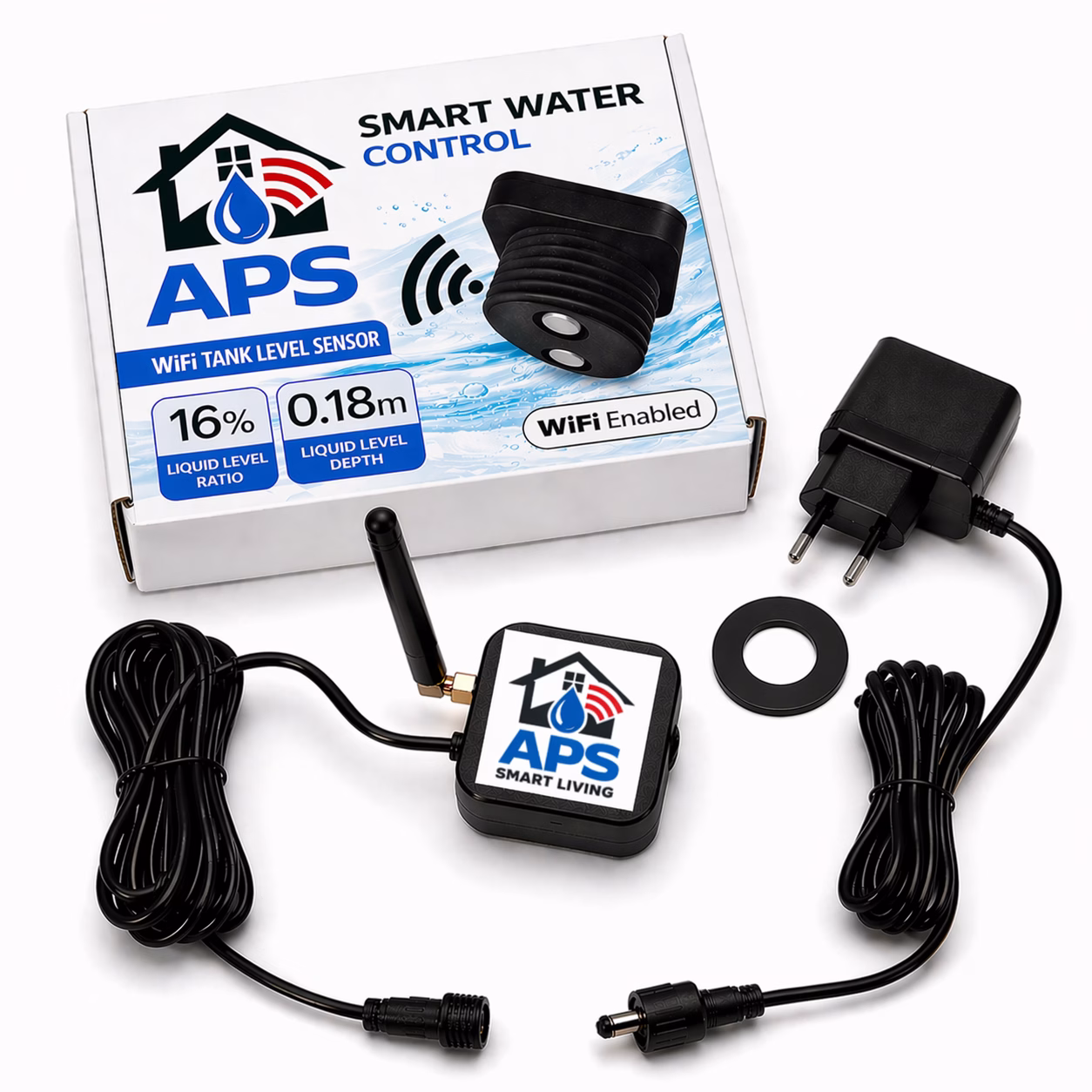

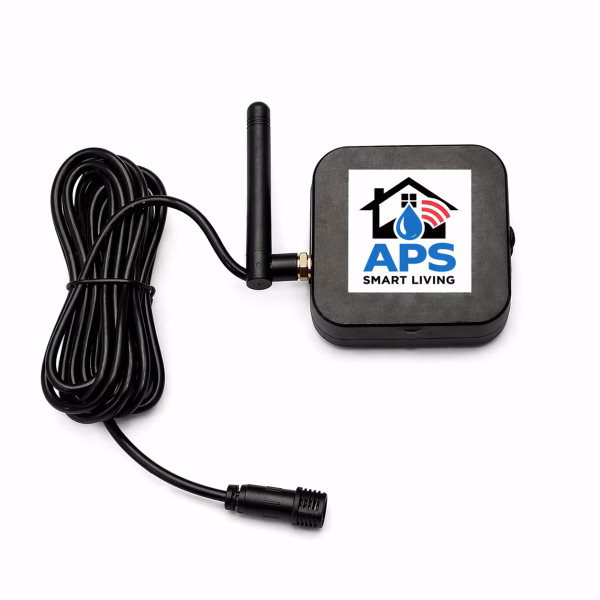

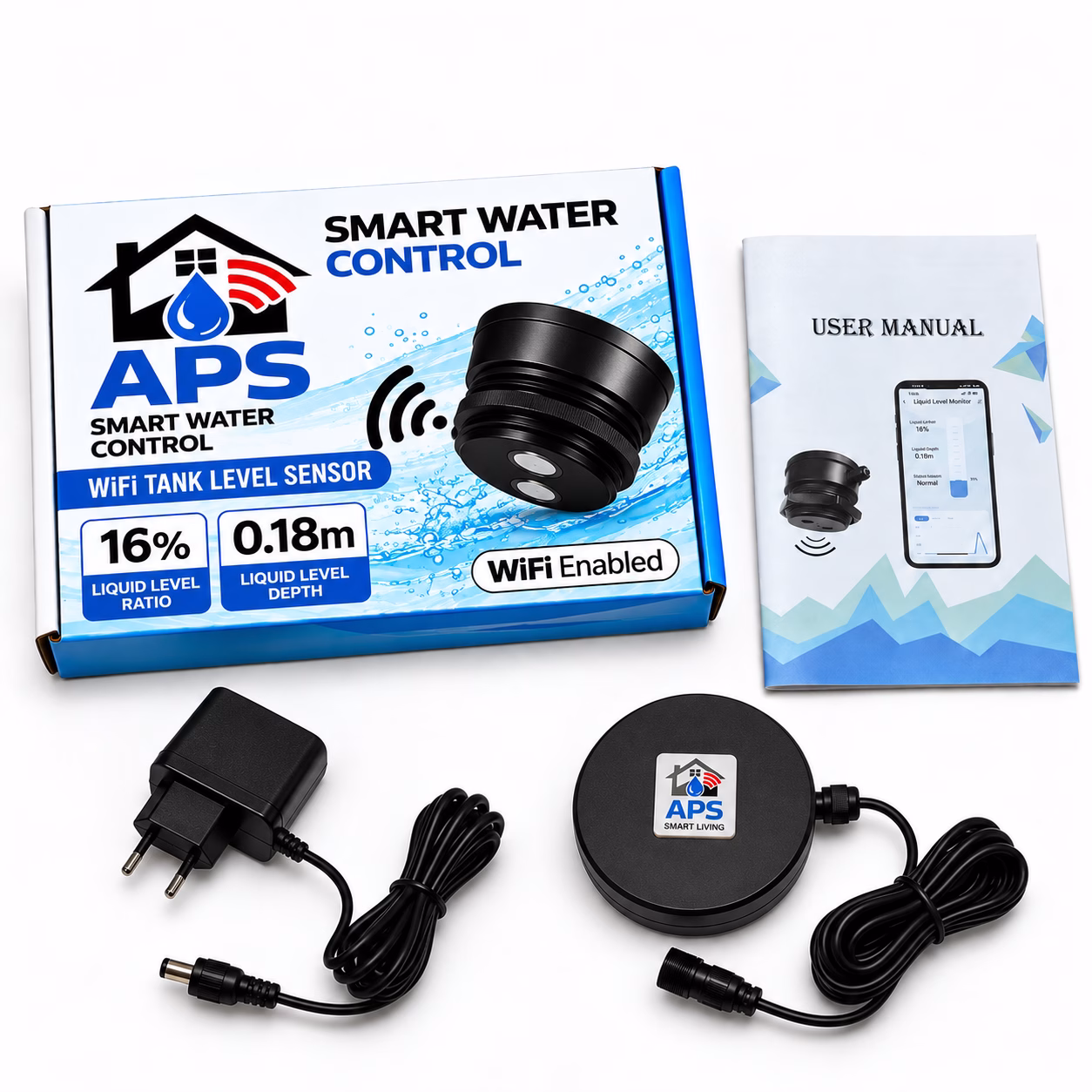

Water Level Sensor Features
- Real-time water level monitoring
- Water level percentage display
- Liquid depth & Tank status monitoring
- Historical water level tracking
- Smart Life and Tuya App compatibility
- Smart low and full water level alerts
- Customizable alert levels
- Non-contact ultrasonic sensing
- Detection ranges up to 2.9m
- Blind area of 10cm
- Suitable for most standard tanks
- No cutting or drilling required
- Low-maintenance operation
- Secure remote monitoring
Why Choose the Control Box & Water Level Solution?
It combines intelligent pump control with accurate water level monitoring to simplify everyday water management. Instead of managing separate systems, you can control your pump, monitor your tank, as well as protect your equipment from one reliable smart solution.
The result is greater convenience, improved efficiency, reduced maintenance, and also better protection for your complete water system.
