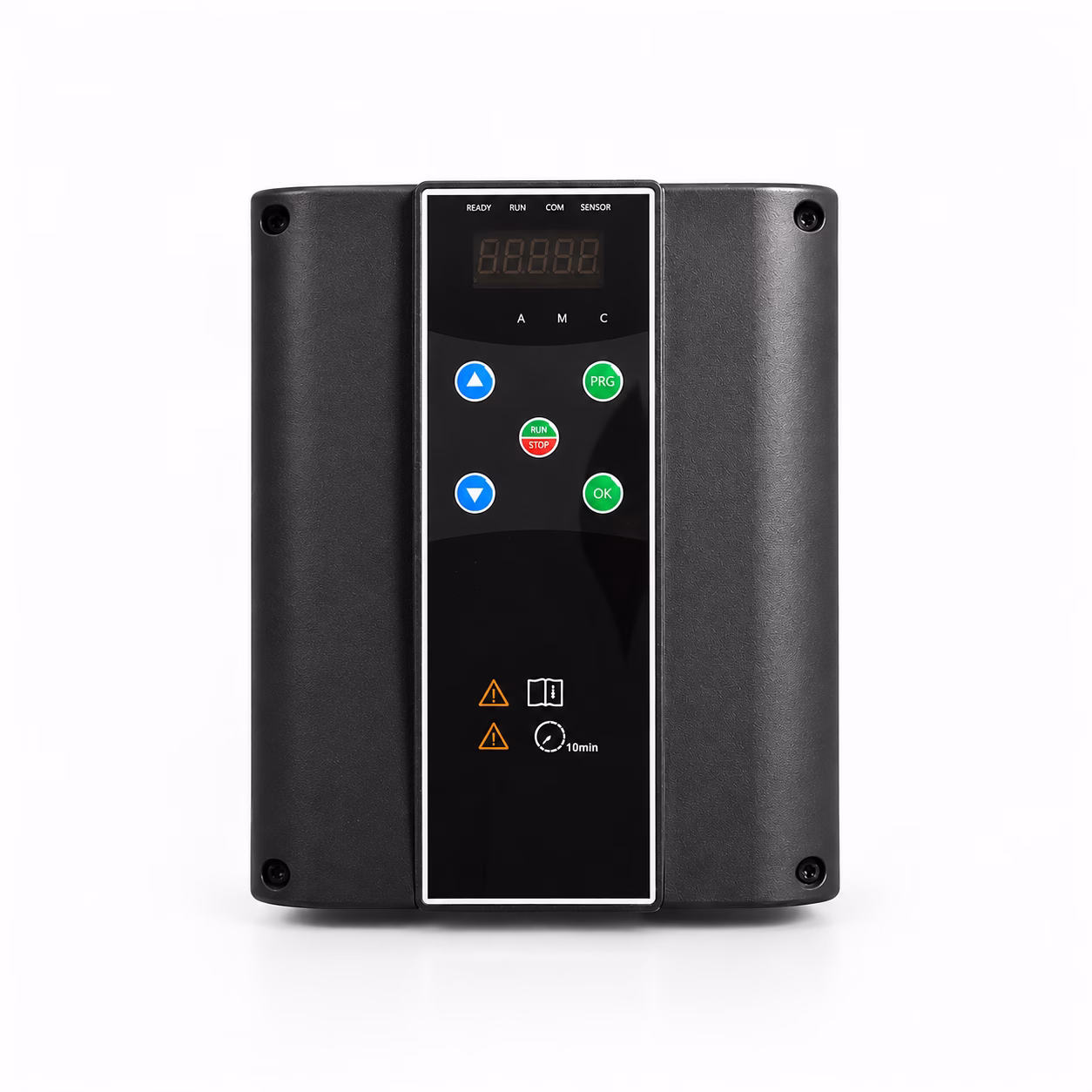

AR200 Intelligent Pump Controller

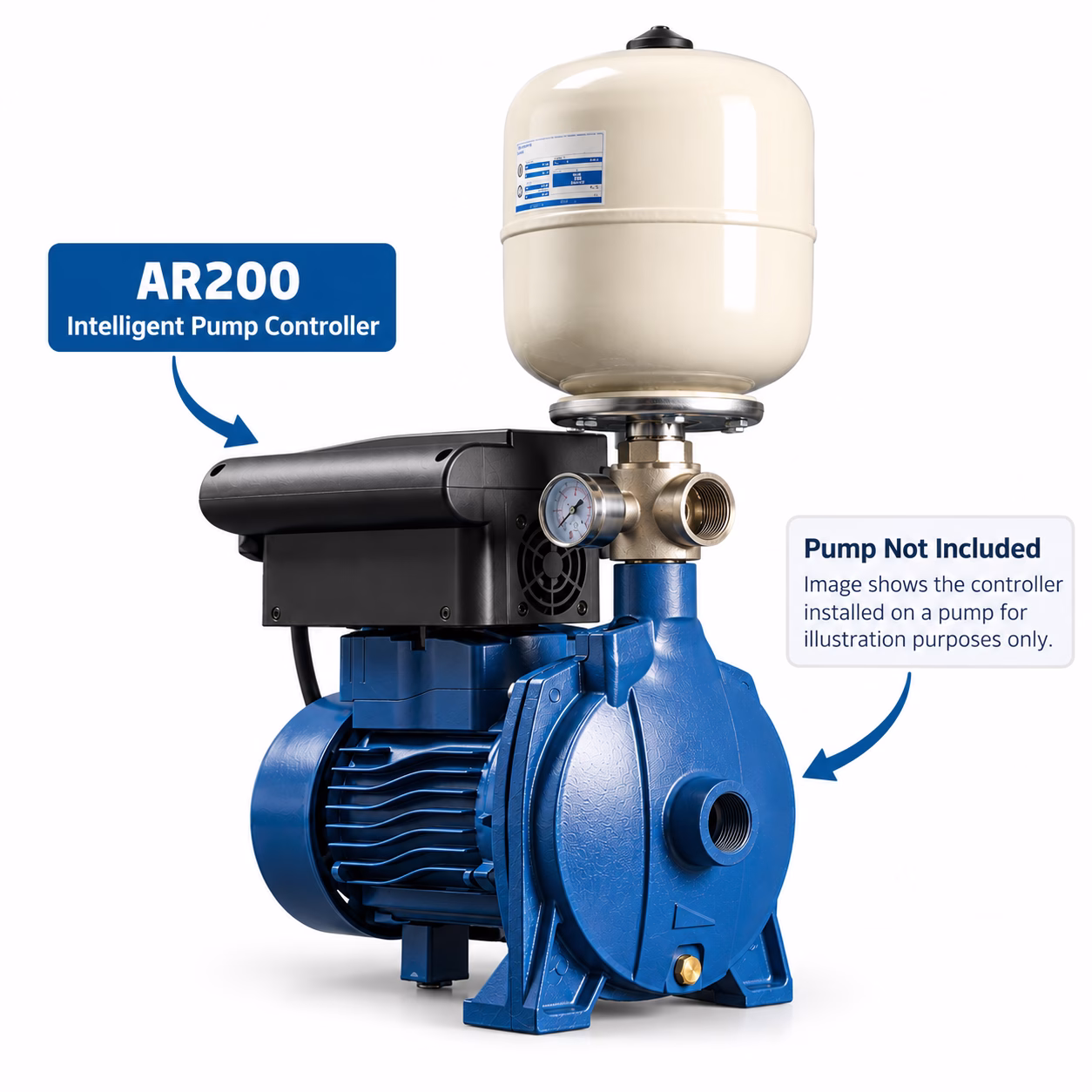

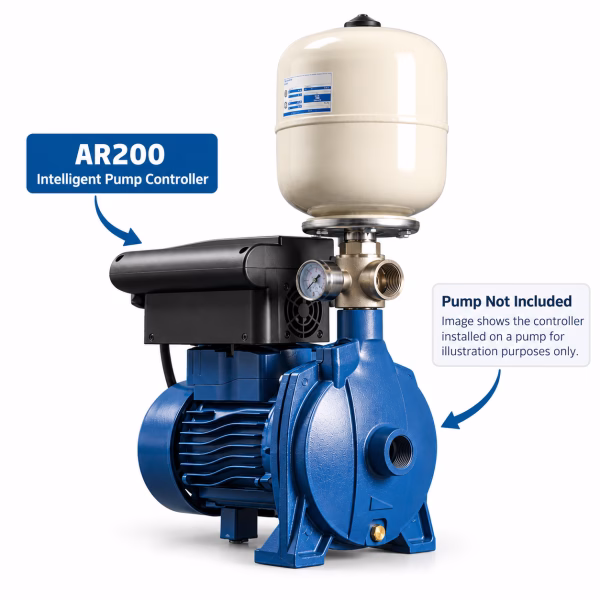

Convert your standard booster pump into a variable speed drive pump with the AR200 Intelligent Pump Controller. Designed for precise water pressure management, it also combines advanced motor control with efficient pump operation. Its features make it a practical choice for industrial, agricultural, as well as commercial applications.
Intelligent Variable Speed Control
Enjoy greater control over your pump with current vector variable frequency drive (VFD) technology. The system delivers high-efficiency drive performance for both induction and synchronous motors. Additionally, three control modes provide flexibility: sensorless vector control (SVC), flux vector control (FVC), and voltage/frequency (V/F) control.
Vector control supports frequencies from 0 to 300 Hz, while V/F control reaches 3200 Hz. The carrier frequency adjusts automatically between 0.5 and 15 kHz according to the load.
Precise Speed and Pressure Management
Maintain accurate water pressure with a control accuracy of 0.01 MPa. Speed accuracy reaches ±0.5% in SVC mode and ±0.02% in FVC mode. Furthermore, the controller provides speed control ranges of 1:100 for SVC and 1:1000 for FVC.
Starting torque reaches 110% at 0.5 Hz, with torque control accuracy of ±5% in FVC mode. Users can choose linear or S-curve acceleration and deceleration, with four independent settings from 0 to 6500 seconds.
Voltage and Current Protection
Keep pump operation under control with built-in voltage as well as current management functions. Automatic voltage regulation maintains constant output voltage during operation. Additionally, overvoltage and overcurrent limits help prevent unwanted trips when voltage or current exceeds operating limits.
Quick current limiting provides further protection for the variable frequency drive by restricting excessive current.
Easy Operation and Flexible Settings
Adjust operating parameters through the keypad, control terminals, or optional communication settings. The LED display provides clear visibility of operating parameters for convenient monitoring and adjustment. Furthermore, optional 4G/Wi-Fi communication settings offer additional flexibility when configuring the controller.
Four digital input terminals and two analogue 4–20 mA input terminals also support different control requirements. Users can also configure frequency through keypad, analogue voltage, analogue current, or optional communication settings.
Main Features of the AR200 Intelligent Pump Controller
- Variable Speed Conversion: Converts a standard booster pump into a variable speed drive pump.
- Input Voltage Options: Supports 110V, 220V, and 380V configurations.
- Output Power Range: Covers 0.37–2.2 kW.
- Digital Frequency Resolution: Provides 0.01 Hz frequency adjustment.
- Analogue Frequency Resolution: Offers 0.025% of the maximum frequency.
- Jog Control: Supports frequencies from 0 to 50 Hz.
- Adjustable Jog Timing: Provides acceleration and deceleration settings from 0 to 6500 seconds.
- Pressure Settings: Supports keypad, control terminal, and optional communication-based adjustments.
Installation and Operating Conditions
Install the controller indoors, away from direct sunlight, dust, corrosive gases, and excessive humidity. Additionally, it operates in ambient temperatures from -10°C to +40°C and withstands vibrations up to 0.6g. These requirements define the recommended environment for installing and operating the controller.
