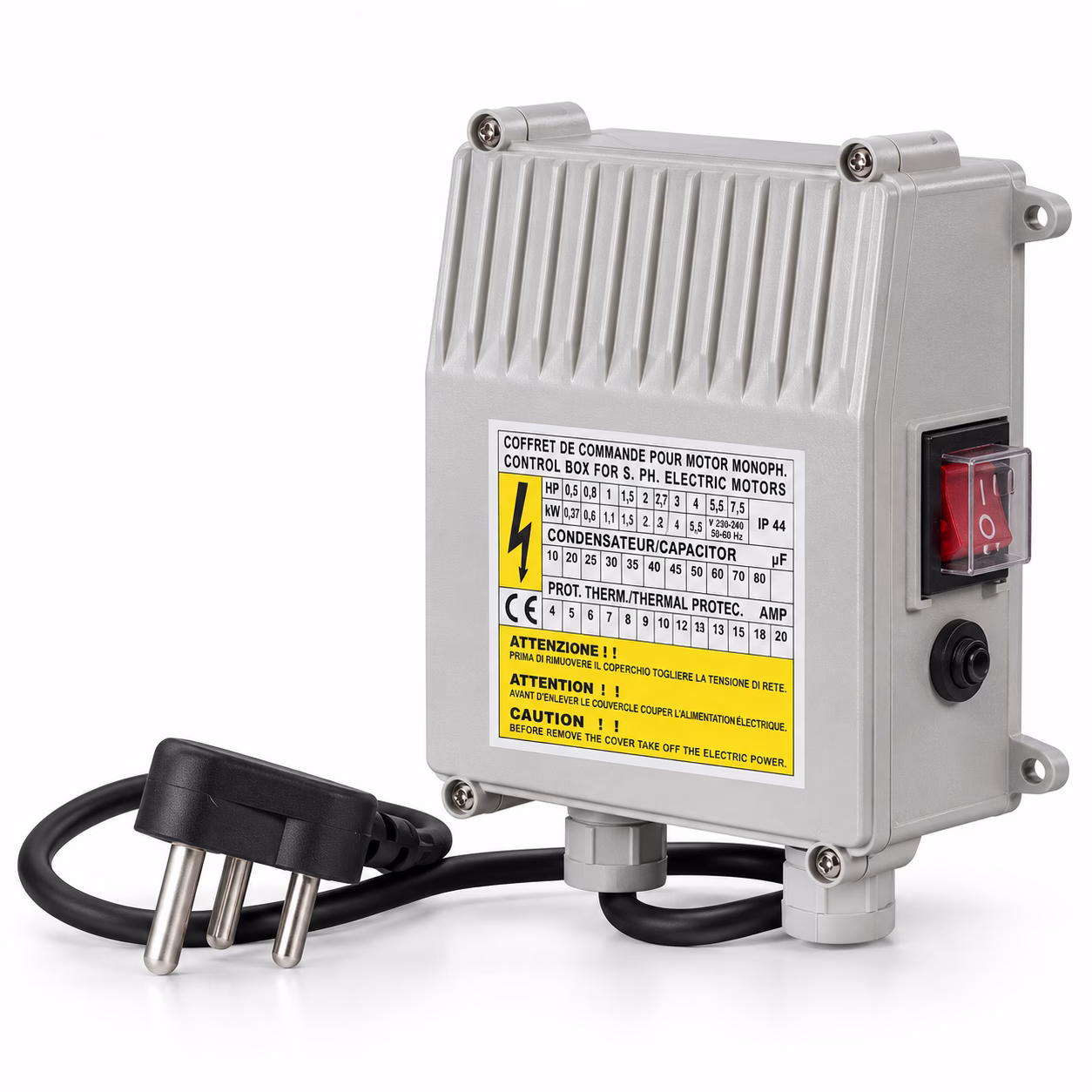

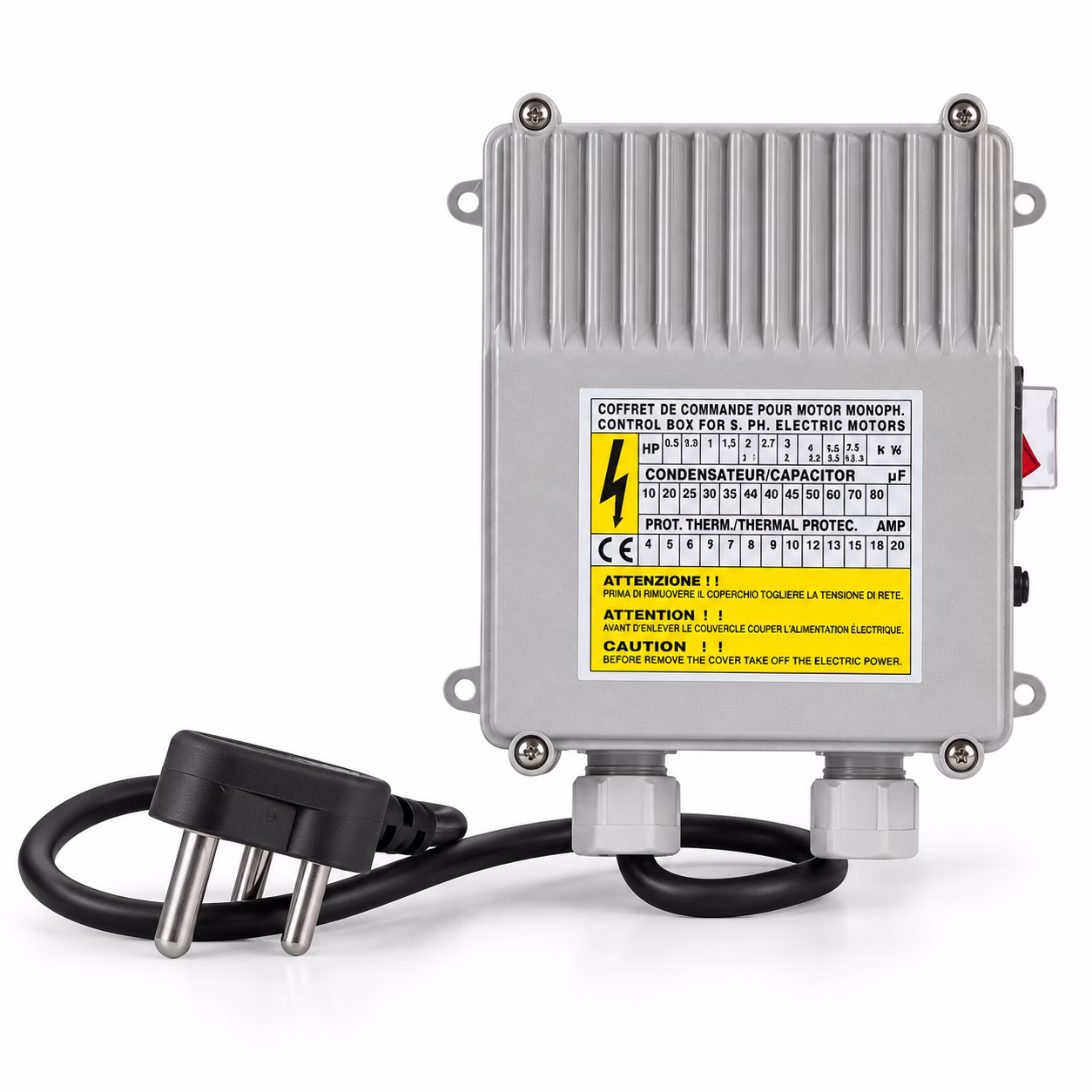

MA Analogue Control Box 1P 220V

Name: MA Analogue Control Box 1P 220V
SKU: 8828
Availability: InStock

Control Equipment

Take simple, practical control of your single-phase pump motor with the MA Analogue Control Box Single Phase 220V. Designed for straightforward manual operation, it supports 220V to 240V supplies at 50Hz without adding unnecessary complexity.

Basic short-circuit and over-current protection helps protect the motor during operation. Additionally, the control box includes a capacitor and thermal overload protector for its specified functions. With an IP44-rated enclosure and configurations for motors from 0.37kW to 2.2kW, it provides a practical control solution across the listed motor options.
MA Analogue – Brochure

Price range: R240.00 through R412.00 Incl VAT

SKU: N/ACategory: Control Equipment

Guaranteed Safe Checkout

Pay in 3 or 12. The Clever Way to Pay.
From over 12 months or 3 interest free payments.
Learn more...

Your flexible payment provider.

Example payment for

x 3
0% interest, zero fees.

Pay in 3

x 12
28.25% interest, plus fees.
Total Payment

Pay in 12

How does PayJustNow work?

Shop and choose PayJustNow at checkout.
Sign up and get instant approval.
Pay in 3 or 12.

You can complete sign-up in under 2 minutes - no need to leave your cart!

Vega

Description

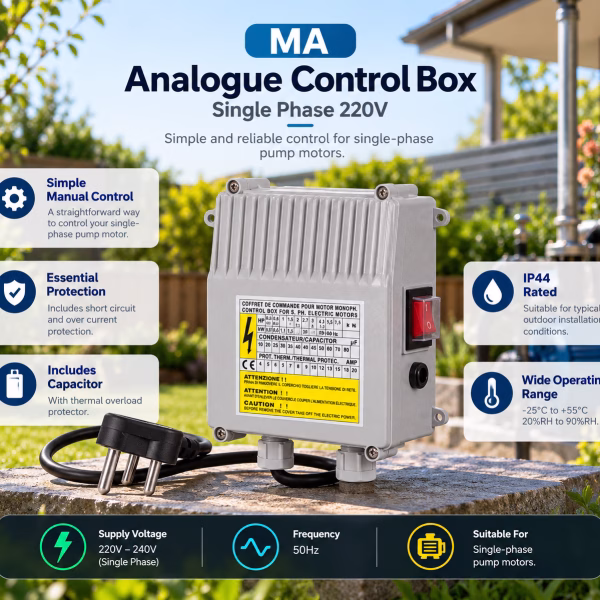

MA Analogue Control Box Single Phase 220V

Simple Control for Single-Phase Pump Motors

MA Analogue Control Box 1P 220V – Designed for straight forward pump motor control, this controller provides AQS’s simplest control option for 220V single-phase pump motors. It also offers a practical way to manually control the motor without adding unnecessary complexity to the operating process.

The controller also supports a supply range from 220V to 240V and operates at the specified 50Hz frequency. Additionally, its manual operating method keeps control simple while providing the essential functions specified for this single-phase control box.

Motor Power (kW)	Motor Power (HP)	Running Capacitor (µF)	MCB (Amp)
0.37	0.50	20	8
0.55	0.75	30	10
0.75	1.00	40	15
1.1	1.50	50	15
1.5	2.00	65	20
2.2	3.00	80	25

Main Features of Analogue Control Box Single Phase 220V

The Control Box also provides basic protection against short circuiting and over current, combining essential functions within one practical control solution.

Additionally, the single-phase control box includes a capacitor and thermal overload protector, as specified in the supplied technical information.

Suitable Installation Conditions – Analogue Control Box 1P 220V

The enclosure carries an IP44 rating, providing the level of protection specified for the product’s stated installation conditions.

Furthermore, it supports temperatures from -25°C to +55°C and environmental humidity levels ranging from 20%RH to 90%RH.

Capacitor and MCB Matching

Choosing the correct capacitor depends on the motor size. Each listed motor option has a specific running capacitor as well as MCB rating:

0.37kW / 0.50HP: 20µF running capacitor with an 8A MCB
0.55kW / 0.75HP: 30µF running capacitor with a 10A MCB
0.75kW / 1.00HP: 40µF running capacitor with a 15A MCB
1.1kW / 1.50HP: 50µF running capacitor with a 15A MCB
1.5kW / 2.00HP: 65µF running capacitor with a 20A MCB
2.2kW / 3.00HP: 80µF running capacitor with a 25A MCB

Post Views: 1

Additional information

Size	0.37kW, 0.55kW, 0.75kW, 1.1kW, 1.5kW, 2.2kW
