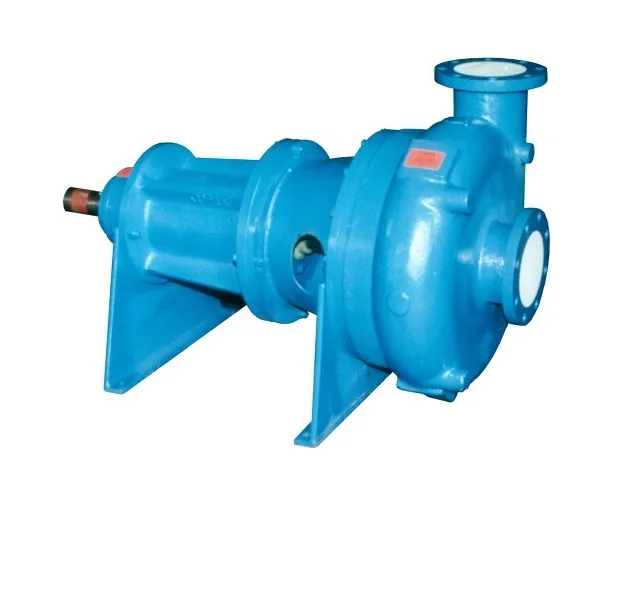

HS Slurry Pump 2″ to 8″ (Large Solids)
The HS Slurry pump is designed with a vortex impeller with higher solids handling in mind. The chrome iron casing and impeller offer higher wear resistance and reliability. The pumps are available with an outlet size from 2″ up to 8″. The pumps deliver a head of up to 40m and a maximum flow of up to 1000 mᶟ/h.
https://www.aqsliquidtransfer.co.za/product/hs-slurry-submersible-pump/
Applications
- Coal Slurry, Iron Oxide Slurry, Mill Scale, Water & Slag
- Grit, Clay Slip, Raw Sewage, Paper Stock, Plant Effluent
- Plant sewage & Sludge, Clarifier Sludge, Textile Mill Effluent
- Drainage, Black Liquor, Filtrate
HS Slurry Pump Features:
- Since the impeller is clear of the pump casing, any solids, Fibrous material that can enter the suction inlet will be expelled through the pump discharge.
- Solids to 203mm (8 inches) and S.G’s to 1.5 can be handled.
Performance:
- Heads up to 40m can be achieved at speeds 1750 rpm.
- The recessed impeller pump will have lower efficiencies than comparable size pump with impeller in the flow path.
HS Slurry Pump Design Features
- Casing – Rugged one piece casing is designed to facilitate the flow of all types of solids and fibrous materials
- Replacement shaft sleeve – Hook type sleeve protects shaft from media.
- Heavy duty shaft – large diameter to handle high loads and reduce shaft deflection
- Vortex impeller – Will allow any sphere and virtually any solid that enters the suction nozzle to pass through the pump.
- Stuffing box – Easily accessible for service
Capabilities
- Since the impeller is clear from the pump casing, any solids, fibrous material that can enter the suction inlet will be expelled through the pump discharge.
- Solids to 203mm (8inches) and S.G’s to 1.5 can be handled.
Performance
- Heads up to 40m can be achieved at speeds 1750rpm
- The recessed impeller pump will have lower efficiencies than comparable size pump with impeller in the flow path
